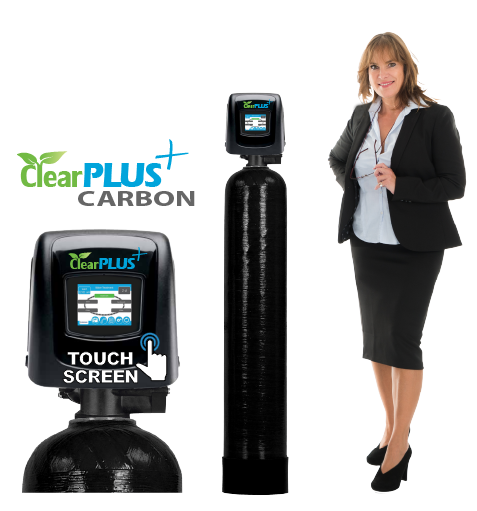

ClearPlus™ Ultimate Series Backwashable Carbon Filters
premium granular activated carbon (GAC) filters for the removal of sediment, chlorine, disinfection by-products, bad tastes and odors, a wide range of organic contaminants, and more - featuring premium control valve with color LCD touch screen display
HomePlus ClearPlus™ Ultimate Series | List Price: US$1,126.00 Starting at: US$898.00 Choose Option:
Write a review. Found a Lower Price? Request a Price Beat |
Factory Direct Savings!!!
- Description & Benefits
- How It Works
- Compare Models
- Specifications
- Install / Manuals
- FAQ
- Validations
- Warranty
Description & Benefits
ClearPlus™ Ultimate Series granular activated carbon (GAC) filters are a superior choice for the removal of general dirt and sediment, chlorine, disinfection by-products including trihalomethanes (THMs), bad tastes and odors, a wide range of organic contaminants, and more. They feature a premium Fleck 5800 XTR2 control valve with large color LCD touch screen display.
ClearPlus™ Ultimate Series Carbon Filters deliver refreshing clean water to every faucet in your home. They also protect your skin and hair from the damaging effects of chlorine.
While ClearPlus™ Ultimate Series Carbon Filters are most often used to treat city water, they can also be used to treat well water, rainwater, and surface water (lakes, streams, and rivers) that are microbiologically safe. They are a great solution for general taste and odor problems. A UV sterilizer should be installed after the ClearPlus™ Ultimate Series Carbon Filter if it is used on a water source with uncertain microbiological quality. We do not recommend this product for the removal of hydrogen sulfide (rotten egg) odor as there are more effective solutions available for this particular problem - see hydrogen sulfide solutions here.
We use only the very best brand-name, NSF/ANSI Standard 61 validated, coconut shell derived carbon - Calgon® OLC 12x40. It is made in the USA! Ask our competitors where they get their carbon...
- Refreshing, great tasting water from every faucet - no more chlorine smell and taste!
- No filter cartridges to replace!
- Cost-effective and long-lasting media
- Simple, automated periodic backwash keeps the media clean and operating efficiently
- Simple operation with no day-to-day maintenance
- Premium brand-name digital control valve (Fleck 5800 XTR2) w/ large color LCD touch screen display
- Great warranty (5 years on control valve, 10 years on tank)
- Bypass included
Ideal for the removal of chlorine and trace organic contaminants in city water:
- removes chlorine
- removes bad tastes and odors
- removes disinfection byproducts
- Better tasting coffee, tea, juice
- No chlorine residual on fruit & veggies
- Pure flavors from foods
- Refreshing and great tasting water
- No chlorine or disinfection byproducts
- Bottled water quality for pennies
ClearPlus™ Ultimate Series Carbon Filter systems are designed to backwash periodically to eject trapped sediment and particulates and to prevent channeling that could reduce system performance. Accordingly, the control valve is connected to a drain and the backwash water together with the rejected contaminants are simply discharged to the drain during the backwash process. The backwash process is usually done once per week and is controlled by the Fleck 5800 XTR2 digital control valve. This is a top-of-the-line control valve featuring a large color LCD touch screen display for easy programming and data access. The backwash process is generally programmed to occur in the middle of the night (fully adjustable) when you are not likely to be using any water. In a typical residential application, the carbon media should be replaced approximately every 5 years to maintain optimal performance.
How ClearPlus™ Ultimate Series Carbon Filters Work
The heart of all of our ClearPlus™ Ultimate Series Carbon Filter systems is their granular activated carbon media. Carbon is a substance that has a long history of being used to absorb impurities and is perhaps the most powerful absorbent known to man. One pound of carbon contains a surface area of roughly 125 acres and can absorb literally thousands of different chemicals. However, as you might expect, not all activated carbon is created equally, nor are all carbons equally effective in removing contaminants from water. Their effectiveness is determined by the size of the carbon granules, the source of the carbon, its purity, the process by which it was made, and of course, how it is applied.
We use only the very best brand-name, NSF/ANSI Standard 61 validated, virgin coconut shell derived carbon - Calgon® OLC 12x40. It is made in the USA! Ask our competitors where they get their carbon...
Calgon®'s OLC 12x40 granular activated carbon (GAC) is a coconut shell derived carbon for the removal of dissolved organic contaminants from domestic water, wastewater and process liquids. These contaminants include taste and odor compounds, chlorine, organic color, total organic carbon (TOC) and industrial chemicals such as chlorinated solvents (TCE, PCE). The pore structure enables it to be used for adsorption of both high and low molecule weight impurities from waters and liquids. The carbon is especially effective for adsorbing trace organic compounds such as vinyl chloride, methylene chloride, MTBE and THM's/disinfection by-products.
The removal of contaminants by granular activated carbon occurs as a result of:
Catalytic Reduction - Upon contact with activated carbon, chlorine is catalytically reduced to harmless chloride ions. This process is very rapid and does not use up the capacity of the carbon to remove other contaminants, thereby allowing for a very long filter life.
Adsorption - Organic contaminants that cause bad taste and odors, and most chemical contaminants are adsorbed onto the media surface as a result of an electro-chemical attraction. As noted above, activated carbon has a massive surface area available for adsorption.
Mechanical Filtration - where particulates, dirt, and sediment get physically removed from the water since they can't fit through the spaces between the granules. Filtration down to a level of about 30-50 microns is generally possible.

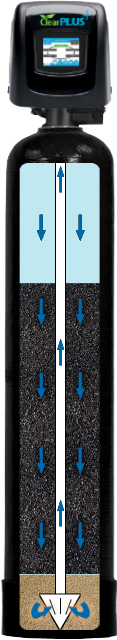

The water flow path through our ClearPlus™ Ultimate Series Carbon Filter systems is downflow. This provides optimal filtration. ClearPlus systems are designed to backwash periodically to eject trapped sediment and particulates so there are no filters to replace. This process also prevents channeling within the media bed that could reduce system performance over time. The backwash function is completely automated and controlled by the premium-grade Fleck 5800 control valve - the "brains" of the system. The control valve, which features a large color LCD touch screen, is connected to a drain and the backwash water together with the rejected sediments are simply discharged to the drain during the backwash process. The backwash is generally programmed to occur in the middle of the night (fully adjustable) when you are not likely to be using any water.
The carbon media has a long service life, generally about 5 years. It can be replaced in about half an hour without any plumbing knowledge or special experience - anyone can do it. There is no need to replace filter cartridges every few months, saving you time and money!
Compare Available Models
Very Good | Ultimate | |
Series: | ClearPlus™ Series Carbon Filters |
ClearPlus™ Ultimate Series Carbon Filters |
Valve: | Fleck 5800 SXT | Fleck 5800 XTR2 |
Display: | Digital w/ Large LCD Screen | Large Full COLOR Touch Screen |
1 Bathroom / Cabin up to 5 gallons / minute |
CP-CS-5800SXT-8-44 |
CP-CS-5800XTR2-8-44 |
1 - 2 Bathrooms up to 7 gallons / minute |
CP-CS-5800SXT-9-48 |
CP-CS-5800XTR2-9-48 |
2 - 3 Bathrooms up to 8 gallons / minute |
CP-CS-5800SXT-10-54 |
CP-CS-5800XTR2-10-54 |
3 - 4 Bathrooms up to 12 gallons / minute |
CP-CS-5800SXT-12-52 |
CP-CS-5800XTR2-12-52 |
4 - 5 Bathrooms up to 14 gallons / minute |
CP-CS-5800SXT-13-54 |
CP-CS-5800XTR2-13-54 |
5 - 6 Bathrooms up to 16 gallons / minute |
CP-CS-5800SXT-14-65 |
CP-CS-5800XTR2-14-65 |
Specifications
Models: | ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-8-44 |
ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-9-48 |
ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-10-54 |
ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-12-52 |
ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-13-54 |
ClearPlus™ Ultimate Carbon CP-CS-5800XTR2-14-65 |
---|---|---|---|---|---|---|
Home Size: | 1 Bathroom or Cabin |
1 - 2 Bathrooms |
2 - 3 Bathrooms |
3 - 4 Bathrooms |
4 - 5 Bathrooms |
5 - 6 Bathrooms |
Tank Diameter (Inches): | 8 | 9 | 10 | 12 | 13 | 14 |
Total Height (Inches): | 56 | 60 | 66 | 64 | 66 | 77 |
Approx. Installation Space Required (W x D x H"): |
8 x 12 x 56 | 9 x 12 x 60 | 10 x 12 x 66 | 12 x 12 x 64 | 13 x 13 x 66 | 14 x 14 x 77 |
Carbon Volume (Cubic Feet): | 0.75 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
Recommended Service Flow Rate (GPM): |
3.5 | 4.4 | 5.5 | 7.9 | 9.2 | 10.7 |
Maximum (Peak) Service Flow Rate (GPM): |
5.2 | 6.6 | 8.2 | 11.8 | 13.8 | 16.0 | Backwash Flow Rate @ 40F (GPM): |
3.5 | 4.5 | 6.0 | 8.0 | 9.0 | 10.0 | Backwash Flow Rate @ 70F (GPM): |
4.0 | 5.0 | 6.0 | 9.0 | 10.0 | 12.0 |
ClearPlus™ Ultimate Series Carbon Filter Specifications: | |
---|---|
Control Valve: | Fleck 5800 XTR2 |
Inlet/Outlet Connections: | 1" MNPT |
Drain Connection: | 1/2" MNPT up to 7 GPM, 3/4" MNPT 8 GPM+ |
Operating Temperature: | 36F to 100F (2 to 38C) |
Operating Pressure: | 20 to 90 psi (1.4 to 6.2 bar) |
Replacement Media: | Calgon® OLC 12x40 |
Typical Media Life: | 5 Years |
Installation / Manuals
We have designed our ClearPlus™ Ultimate Series Carbon Filter systems for ease of installation. We provide a bypass valve with each system. The bypass valve has male 1" NPT threaded fittings. If your pipe diameter is different, you can connect to the bypass with simple adapters available at any hardware store. The drain line connection 1/2" MNPT for backwash flow rates up to 7 GPM, and 3/4" MNPT for backwash flow rates of 8 GPM+.
The ClearPlus™ Ultimate Series Carbon Filter system is generally installed after the pressure tank or pressure booster if applicable.
We recommend that ClearPlus™ Ultimate Series Carbon Filter systems be installed by a licensed plumber, however, your warranty is valid as long as your system is installed in accordance with local plumbing codes and the Owner's Manual.
HomePlus ClearPlus™ Ultimate Series Backwashable Carbon Filters w/ Touch Screen Customer Questions & Answers
Validations
Only the best components go into our ClearPlus™ Ultimate Series Carbon Filter systems. They are sourced from some of the leading manufacturers in the business, and assembled at our factory in Canada. You can be assured that only the finest materials have gone into the manufacture of all ClearPlus™ Ultimate Series Carbon Filter systems and that the materials used are safe for potable water contact. The following is a list of key system components:
Item | Manufacturer | Material Safety Validations |
---|---|---|
Valve & Bypass Assembly | Pentair PLC Milwaukee, WI, USA Made in USA |
NSF/ANSI Standard 44 NSF/ANSI Standard 372 |
Media Tank | Pentair PLC Milwaukee, WI, USA Made in USA |
NSF/ANSI Standard 42 |
Carbon Media | Calgon Carbon Corporation Moon Township, PA, USA Made in USA |
NSF/ANSI Standard 61 |
Warranty Details
ClearPlus™ Ultimate Series Carbon Filter systems are backed by a comprehensive warranty program.
Subject to the limitations noted below, ClearPlus™ Ultimate Series Carbon Filter components are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the following periods:
Fleck 5800 XTR2 Control Valve: 5 Years*
Media Tank: 10 Years
All Other Components (except as noted**): 1 Year
*Note: Piston seals are considered a wear and tear item and require regularly scheduled maintenance and replacement, usually every 3-5 years. They are warranted for a period of 1 year.
**Note: Due to the wide variety of potential feed water conditions, there is no warranty on the carbon media or underbed gravel.
The term of these warranties begins on the date of delivery of the product to the customer and continues until the earlier of:
- the end of the warranty term noted above; or
- the date in which the product(s) is/are removed from the original location of installation; or
- the date in which the original purchaser sells or otherwise transfers ownership of the home in which the product(s) was/were originally installed.
Only products purchased from an Authorized Dealer or HomePlus Products Inc. directly are eligible for this warranty. The products must have been installed and operated accordance with the instructions and operating conditions stated in the Owner's Manual.
Customer must register his or her warranty with HomePlus products Inc. within 90 days of original purchase for the warranty to remain valid.
This warranty applies only in Canada and the United States of America.
In the event that a part is deemed defective, the user must immediately inform HomePlus Products Inc. who will furnish a replacement part at no cost to the user. HomePlus' obligation to the customer shall be limited to the replacement of the defective part by prepaid standard freight to the original point of installation. Expedited shipping is available at the discretion and cost of the customer. When required, the return of defective parts to HomePlus is the responsibility of the customer.
This warranty does not cover any labour costs including labour costs related to troubleshooting, repair, installation, or maintenance.
This warranty does not apply to the following situations: misuse; normal wear and tear; neglect; unauthorized repair or damage caused through installation, adaptation, or modification; use in an improper manner or manner inconsistent with the manufacturer's installation, operating, and maintenance instructions; misapplication; wear or deterioration due to environmental conditions; damage occurring during transit; mishandling; improper storage; incorrect supply of water; tampering or alteration; fire, freezing; Act of god; or any cause beyond the control of HomePlus Products Inc.
The original warranty period does not change in the event of part replacement by HomePlus Products Inc.
This warranty is issued exclusively to the original consumer purchaser of record so long as the product remains installed in the original location of installation, and is not transferable.
The provisions of the foregoing warranties are in lieu of any other warranty, whether expressed or implied, written or oral (including any warranty of merchantability or fitness for a particular purpose). HomePlus Product Inc.'s liability arising out of the manufacture, sale, or supplying of the products or their use or disposition, whether based upon warranty, contract, tort, or otherwise, shall not exceed the actual purchase price paid by the authorized distributor or consumer for the product. In no event shall HomePlus Products Inc. be liable to the distributor or any other person or entity for special, incidental, consequential or punitive damages (including, but not limited to, property loss, loss of incomes, or loss of use damages) arising out of the manufacture, sale, or supplying of the products, even if HomePlus Products Inc. has been advised of the possibility of such damages or losses. These warranties are governed by the laws of the Province of British Columbia, Canada, and may change without notice.
To report a warranty problem with your system or request warranty service, please call HomePlus Products Inc. Toll free: 1-866-376-2690
