Enpress CT-10x5 Pleated Sediment Filter - 5 Micron

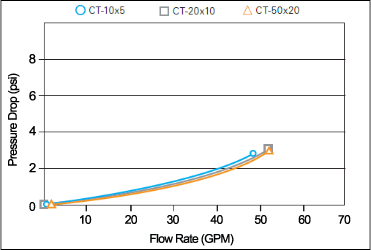

The CT-10x5 is a dual gradient double pleated filter designed for extended life and use, with a filtration level of 5 microns (nominal). Like other Orange Series cartridges, this filter features two distinct pleated layers, a 10 micron outer layer and a 5 micron inner layer. This structure, combined with a surface area of approximately 100 square feet, provides a greatly improved service life while achieving high flow rates with low pressure drop. The CT-10x5 is recommended for flow rates up to 50 GPM. See the pressure drop vs. flow rate chart for expected pressure loss at various flow rates.

Each filter comes with top cap with built-in handle for lightweight and easy removal, a bag for proper sanitary disposal, and a double o-ring bottom seal to prevent filter bypass.

The Enpress CT-10x5 cartridge is designed specifically for Enpress ONE Cartridge Tank filter systems with 1.25 inch inlet/outlet. The Enpress ONE Cartridge Tank is marketed under a variety of other brand names and part numbers, including: Watts SCT-125; US Filter Systems 350-ONE-CT-125; Hellenbrand 109710, and Nelsen NFS-HF. This cartridge is compatible with all of these systems that have a 1.25 inch inlet/outlet.

Features and Benefits:

• Dual gradient, double pleated filters for improved service life, contaminant removal, and dirt holding capacity
• Huge surface area to promote high flow rates, low pressure loss, and reduced cartridge replacement frequency
• Double Buna-N o-ring seals to ensure no bypass of contaminants and high chemical compatibility
• Filter belly bands prevent collapsing of filters under high flow or contaminant load applications
• Durable polyester filter and polypropylene cap construction for superior bacteria and chemical resistance

Enpress CT-10x5 Filter Specifications

Specifications
Filter Type:	Dual-Gradient, Pleated
Micron Rating:	10 Micron Outer / 5 Micron Inner
Max. Recommended Flow Rate:	50 GPM (189 LPM)
Filter Material:	Polyester
End Cap Material:	Polypropylene
O-Ring Material:	Buna-N
Max Pressure (Feed):	150 psi (<90 psi recommended)
Surface Area:	Approx. 100 Sq. Ft.

Enpress CT-10x5 ONE Cartridge Pleated, Dual Gradient 10/5 Micron Orange Series Reviews

There are currently no reviews for this product.
Be the first to write a review.

Enpress CT-10x5 ONE Cartridge Pleated, Dual Gradient 10/5 Micron Orange Series Customer Questions & Answers

Question:	Will this fit my Monster Flow MF40?
Answer(s):	Yes this will fit the Monster Flow MF40. The part number that WaterSoft uses with their Monster Flow units is "CT-1005" which is the same as the CT-10x5. By HomePlus Water on Dec 09, 2024
