Enpress CT-COMM05 Pleated Polypropylene
Commercial Sediment Filter - 5 Microns

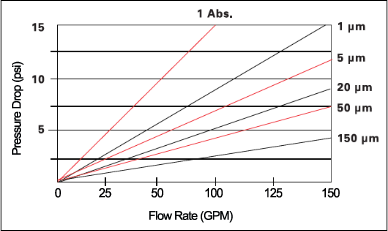

The CT-COMM05 is a 5 micron pleated polypropylene commercial sediment filter designed for extended service life and high flow rates. The CT-COMM05 is acceptable for flow rates up to 125 GPM. See the pressure drop vs. flow rate chart for expected pressure loss at various flow rates.

The CT-COMM05 will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other soft particle filtration. The Red Series also provides lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filters. This results in higher water quality and longer life of the filtration system.

Each filter comes with top cap with built-in handle for lightweight and easy removal, a bag for proper sanitary disposal, and a double o-ring bottom seal to prevent filter bypass.

All components and materials are manufactured from NSF 61 and FDA certified materials.

The Enpress CT-COMM05 cartridge is designed specifically for Enpress ONE Cartridge Tank filter systems with 2 inch inlet/outlet. The Enpress ONE Cartridge Tank is marketed under a variety of other brand names and part numbers, including: Watts SCT-200; Hellenbrand 109711, and Nelsen NFS-HF-PLUS. This cartridge is compatible with all of these systems that have a 2 inch inlet/outlet.

Features and Benefits:

• Improved service life, contaminant removal, and dirt holding capacity
• Large surface area to promote high flow rates, low pressure loss, and reduced cartridge replacement frequency
• Double EPDM o-ring seals to ensure no bypass of contaminants and high chemical compatibility
• Durable polypropylene construction for superior bacteria and chemical resistance
• Belly filter bands to prevent filter collapse under high flow rates and heavy contaminant loading

Enpress CT-COMM05 Filter Specifications

Specifications
Filter Type:	Pleated Sediment Filter
Micron Rating:	5 Microns (Nominal)
Max. Recommended Flow Rate:	125 GPM (473 LPM)
Filter Material:	Polypropylene
End Cap Material:	Polypropylene
O-Ring Material:	EPDM
Max Pressure (Feed):	150 psi (<90 psi recommended)
Max. Pressure Differential:	40 psi
