Pentek ST Series Stainless Steel Housings and Accessories
ideal for high temperature and high pressure applications

Pentek ST Series Stainless Steel Filter Housings effectively provide heavy duty filtration for smaller filtration systems and point-of-use applications. Supplying flow rates of up to 20 gpm (76 Lpm), at a maximum water temperature of 300F (149C), ST Series Housings are ideal for hot water and high-pressure applications that are not appropriate for plastic housings.
The brushed 304 stainless steel sumps are available with either a pipe plug or petcock in the bottom for draining. Heads are manufactured from nickel-plated cast-brass. ST Series Housings are easy to install and maintain. They are compatible with a wide range of filter cartridges, adding to their versatility.
Available in 10, 20 and 30 inch lengths (3/4 inch inlet/outlet).
- brushed 304 stainless steel sump
- nickel-plated brass head
- rated to a maximum pressure of 250 PSI (17.2 bar)
- rated to a maximum water temperature of 300F (149C)
NOTE: Maximum cartridge diameter is 3" (76 mm). Will not accept GAC, CC, CGAC, TSGAC, WS, PCF or PCC Series cartridges. Not recommended for applications with
TDS or chlorides >1000 ppm and/or pH <5.0. Use of this product in these conditions will void the warranty.
10" for up to 10 GPM
Part# 156017-02

US$276.20
- More Info -
30" for up to 20 GPM
Part# 156019-02

US$456.43
- More Info -

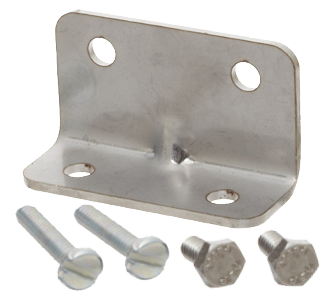

Part# 156037

US$25.96
- More Info -
Part# 143216

US$20.33
- More Info -
