Pentek Polydepth Series Filter
Also branded as: Pentek / Ametek / Culligan / Kleen Plus / Plymouth Products / Pentair / American Plumber / Bruner / US Filter Polydepth Series
The POLYDEPTH® filtration cartridge is constructed of thermally bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.
Unique micro-grooves provide added surface area. The polydepth cartridge will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications. The recommended temperature limit of 40° F to 175° F (4.4° C to 79.4° C) allows it to be used in many hot water applications. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

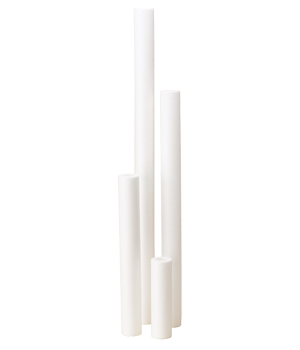

Available in different lengths from
93/4" up to 40". Unlike competitive
cartridges, the longer lengths are not
manufactured from shorter
cartridges that are glued together.
They are continuous units that
cannot separate during use.
POLYDEPTH cartridges are

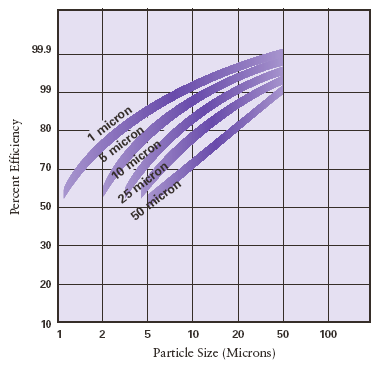

available in various micron ratings
including 1-, 5-, 10-, 25-, and 50-
microns.
- Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
- Consistent flow rate and superior filtration performance
- Available in a wide range of micron ratings and lengths
- Will not impart taste, odor or color to water being filtered
- Ideal for a wide variety of industrial filtration
 If you find a lower advertised price, we will beat it by 5% of the difference |
 |
|||
| Model | Micron Rating* |
Size | # per case |
Buy a Case |
|---|---|---|---|---|
| Pentek Polydepth PD-1-934 Part #15574843 |
1 | 2 1/2" x 9 7/8" (64mm x 251mm) |
24 | |
| Pentek Polydepth PD-1-20 Part #15575543 |
1 | 2 1/2" x 20" (64mm x 510mm) |
20 | |
| Pentek Polydepth PD-1-30 Part #15576243 |
1 | 2 1/2" x 30" (64mm x 763mm) |
20 | |
| Pentek Polydepth PD-1-40 Part #15576943 |
1 | 2 1/2" x 40" (64mm x 1017mm) |
20 | |
| Pentek Polydepth PD-5-934 Part #15574943 |
5 | 2 1/2" x 9 7/8" (64mm x 251mm) |
24 | |
| Pentek Polydepth PD-5-20 Part #15575643 |
5 | 2 1/2" x 20" (64mm x 510mm) |
20 | |
| Pentek Polydepth PD-5-30 Part #15576343 |
5 | 2 1/2" x 30" (64mm x 763mm) |
20 | |
| Pentek Polydepth PD-5-40 Part #15577043 |
5 | 2 1/2" x 40" (64mm x 1017mm) |
20 | |
| Pentek Polydepth PD-10-934 Part #15575043 |
10 | 2 1/2" x 9 7/8" (64mm x 251mm) |
24 | |
| Pentek Polydepth PD-10-20 Part #15575743 |
10 | 2 1/2" x 20" (64mm x 510mm) |
20 | |
| Pentek Polydepth PD-25-934 Part #15575143 |
25 | 2 1/2" x 9 7/8" (64mm x 251mm) |
24 | |
| Pentek Polydepth PD-25-20 Part #15575843 |
25 | 2 1/2" x 20" (64mm x 510mm) |
20 | |
| Pentek Polydepth PD-25-30 Part #15576543 |
25 | 2 1/2" x 30" (64mm x 763mm) |
20 | |
| Pentek Polydepth PD-25-40 Part #15577243 |
25 | 2 1/2" x 40" (64mm x 1017mm) |
20 | |
| Pentek Polydepth PD-50-934 Part #15575243 |
50 | 2 1/2" x 9 7/8" (64mm x 251mm) |
24 | |
| Pentek Polydepth PD-50-20 Part #15575943 |
50 | 2 1/2" x 20" (64mm x 510mm) |
20 | |
