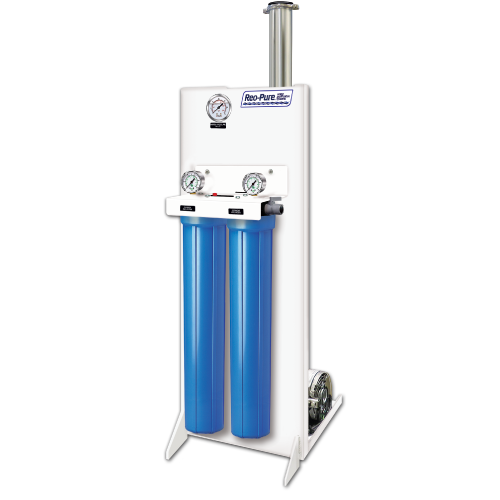

Reo-Pure™ LP3-750 750 GPD Reverse Osmosis (RO) System
Reo-Pure™ LP3-750 Reverse Osmosis System | List Price: US$4,091.00 Starting at: US$2,595.00 Choose Option:
Write a review. Found a Lower Price? Request a Price Beat |
- Description
- Specifications
- Parts & Accessories
- Feed Water Parameters
- Reviews
- FAQ
- Design Conditions
The next generation of low pressure RO systems
Engineered for optimal space savings; low operating costs; sediment and carbon pre-filtration; built-in system monitoring tools; fast setup/installation and years of easy servicing and maintenance. The new Reo-Pure™ LP3-750 offers up to 750 gallons per day of treated water with low energy consumption and ultra low operating pressure. To determine what the LP3-750 can provide in your application, please use the calculator below.
Reo-Pure™ LP3-750 Standard Features:
- Powder Coated Aluminum Frame
- 5 Micron Sediment Pre-Filter
- 10 Micron Carbon Block Pre-Filter
- Pentek® Slim Line Filter Housings
- Fluid-O-Tech™ Rotary Vane Pump
- High Efficiency Carbonator Motor
- On / Off In-Line Power Switch
- Ultra Low Pressure Membrane Elements
- Water Saving Recirculation Loop
- Manual Membrane Flush Valve
- Feed Water Shut-Off Valve
- Product Water Check Valve
- Feed Water Low Pressure Switch
- Product Water Pressure Switch
- 0-100 PSI Pre-Filter Pressure Gauges
- 0-300 PSI System Operating Pressure Gauge
- John Guest® Fittings with Locking Clips
Reo-Pure™ LP3-750 Benefits Include:
- Low Energy Consumption
- Ultra Low Operating Pressure
- High Production Capabilities
- Low Operation & Maintenance Costs
- Slim & Compact Design
- Comes Fully Assembled, Plumbed & Wired
- Factory Tested to High Standards
- Fast & Easy Maintenance / Servicing
- One Year Limited Warranty
- Made in the U.S.A.
Reo-Pure™ LP3-750 Specifications
| Permeate Flow | 750 GPD (0.52 GPM) |
| Inlet Connection | 1/2" NPTF |
| Product Connection | 3/8" Tube |
| Reject Connection | 3/8" Tube |
| Membrane Element | 2.5" x 40" |
| Membrane Vessel Material | Stainless Steel |
| Filter Housing | 2 x 20" Slim Line |
| Pump Type | Rotary Vane (140 GPH) |
| Motor (60Hz) | 1/3 HP |
| Approximate Weight | 55 lbs. |
| System Dimensions (H x W x D) |
50" x 14" x 16" |
| Shipping Dimensions (H x W x D) |
55" x 21" x 19" |
Reo-Pure™ LP3-750 Parts & Accessories
Reo-Pure™ LP3-750 Feed Water Parameters
| Temperature Range | 40°F - 90°F (5°C - 30°C) |
| Feed Water TDS | < 2,000 PPM) |
| Hardness | 10 grains / gallon) |
| Iron | 0.01 PPM (0.01 mg/L) (dissolved) |
| Turbidity | < 1 NTU |
| Hydrogen Sulfide | Must be removed |
| Chlorine | < 0.1 PPM (0.1 mg/L) |
| Manganese | 0.05 ppm (0.05 mg/L) |
| Inlet Feed Water Pressure | 40 PSI 0 85 PSI |
| pH Range | 3 - 11 |
Reo-Pure™ LP3-750 Reverse Osmosis System Reviews
There are currently no reviews for this product.
Be the first to write a review.
Reo-Pure™ LP3-750 Reverse Osmosis System Customer Questions & Answers
Reo-Pure™ LP3-750 Design Conditions
| Operating Pressure: | 100 PSI |
| Maximum Operating Pressure: | 150 PSI |
| Feed Water TDS | 500 PPM as NaCl |
| LOw Feed Water Pressure Switch | System shut down at 15 PSI decreasing pressure/td> |
| Product Water Pressure Switch | System shut down at 45 PSI System starts up at 25 PSI |
| Membrane Element | TFC Polyamide - High Flux |
| Rejection Rate | Minimum 95% - Maximum 99% |
| Design Recovery | 50% |
| Electrical | 115V, 60Hz, 1Ph |
