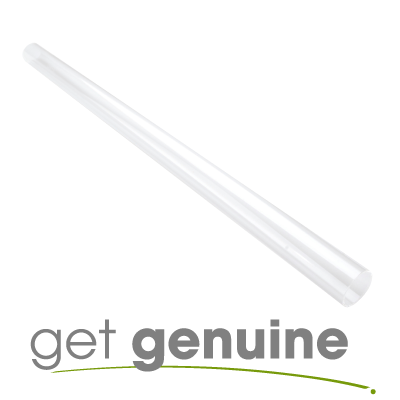

Viqua / Sterilight QS-810 UV Sleeve

We are pleased to offer a complete selection of replacement quartz sleeves for all Sterilight ultraviolet (UV) sterilizers.

Sterilight Model #QS-810 replacement sleeves are designed only for use in Sterilight or Viqua UV sterilizers. We do not recommend that you attempt to use Sterilight replacement sleeves in models made by other manufacturers.

It is critical that only genuine Sterilight brand original equipment sleeves be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV sleeves. While they may physically fit in a Sterilight or Viqua system, they are NOT compatible. Testing of a wide range of these sleeves has shown that many do not allow a safe UV dose to pass through the sleeve and may be subject to failure.

Sterilight QS-810 is the sleeve for the following models:

• S8Q-PA
• SSM-37
• S8Q
• S8Q-GOLD

Sterilight QS-810 Specifications

Technical Specifications
Part #	QS-810
Replace Sleeve	every 24 Months or as needed

How to change a Sterilight QS-810 Sleeve

1. Turn off water supply valve to UV sterilizer
2. Turn on faucet elsewhere in the home to depressurize the system
3. Disconnect your UV system from power (unplug unit)
4. Allow system to cool for 5 - 10 minutes
5. Follow instructions for removing lamp
6. Remove the top retaining nut & O-ring
7. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water
8. Remove the quartz sleeve from the UV chamber.
9. Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
10. If quartz sleeve can not be cleaned purchase a new sleeve.
11. Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s).
12. Hand tighten the retaining nut(s), taking care not to over-tighten.
13. When service is complete, assemble the prerequisites in the reverse order of disassembly.
14. Turn on water supply valve
15. Check for leaks
16. Close faucet elsewhere in the home
