We are pleased to offer a complete selection of replacement quartz sleeves for all Viqua (Trojan) UVMax ultraviolet (UV) sterilizers.

The Viqua (Trojan) UVMax Model #602732 replacement sleeve is designed only for use in certain UV sterilizers manufactured by Viqua (formerly R-Can) as listed below. Viqua manufacturers several UV sterilizers on an OEM basis for other companies. This sleeve is the OEM replacement for the Pelican™ PUV-8.

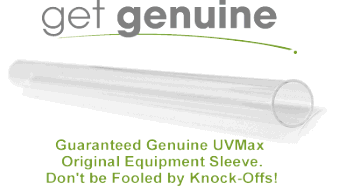

It is critical that only genuine UVMax brand original equipment sleeves be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV sleeves. While they may physically fit in a UVMax system, they are NOT compatible. Testing of a wide range of these sleeves has shown that many do not allow a safe UV dose to pass through the sleeve and may be subject to failure.

UVMax #602732 is the sleeve for the following models:

• Viqua (Trojan) UVMax Model C / C4
• Viqua (Trojan) UVMax Model D / D4
• Viqua (Trojan) UVMax Model D4 Premium
• Viqua (Trojan) UVMax Model D+ / D4+
• Viqua UVMax Model IHS10-D4
• Viqua (Trojan) UVMax Model IHS12-D4
• Viqua (Trojan) UVMax Model IHS22-D4
• Pelican PUV-8-P

UVMax #602732 Specifications

Technical Specifications
Part #	#602732
Replace Sleeve	every 24 Months or as needed

How to change a UVMax #602732 Sleeve

1. Turn off water supply valve to UV sterilizer
2. Turn on faucet elsewhere in the home to depressurize the system
3. Disconnect your UV system from power (unplug unit)
4. Allow system to cool for 5 - 10 minutes
5. Follow instructions for removing lamp
6. Remove the top retaining nut & O-ring
7. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water
8. Remove the quartz sleeve from the UV chamber.
9. Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
10. Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s).
11. Hand tighten the retaining nut(s), taking care not to over-tighten.
12. When service is complete, assemble the prerequisites in the reverse order of disassembly.
13. Turn on water supply valve
14. Check for leaks
15. Close faucet elsewhere in the home

Viqua UVMax #602732 Sleeve for C/D Series Reviews

Great Product
The UV Max is works wonders. My well water has some bad critters in it; but after the water passes through the UV Max chamber, the water is completely cleaned. I have water sampled checked by the State Water Board. - John H

Great product easy to install well made would buy again good price - Ryan
Genuine Viqua .
I have experimented with various aftermarket UV parts over the years. Occasionally they have worked ok but often they have caused Big problems. I don't ever recall any problems with the Genuine Viqua brand. - William Euerle
Lampe Trojan
Excellent - andre r
Replacement bulb/ sleeve
Very satisfied with the product as it pertains to price, delivery and ease of ordering. - George A
New Water Filter UV Light Replacement Kit
The new UV Light Replacement Kit that you sent me worked out wonderfully. It was easy and quick to install and my well water system was back in operation with no fuss and no muss. Thank you!! - Jim H.
Untitled
received my order quickly and in good shape. Price was competitive and quality was excellent. - Scott
Sleeve and Lamp replacement
Effective combination of "spare parts". I keep a spare sleeve because I've broken or cracked two during lamp replacement or sleeve cleaning. Manipulating the O rings when removing sleeve and for cleaning can be tricky... - Pat
UV Light Replacement
Great service and the new UV Light works perfectly. Sadly, my original UV light failed at the eleventh month and I missed out on the 15% discount offer I got in the mail later. - Mark H
Lamp uv C4 with tube
Good product and shipped very fast - Marie-France
Instructions Problem
Excellent kit. But very important to syphon out as much water as possible from Trojan tank before attempting to install the new(light gray) plastic bolt. The new sleeve/bolt installs perfectly when no water. But water floats sleeve back up & makes it go crooked. Can lead to sleeve breakage. I have worked with Viqua & hopefully new instructions will include this step. - William
Replacement bulb
Fit perfectly. - Cindy
Blub Sleeve Replacement
Very satisfied with the product and the speed of delivery of it. - George Archibald
Viqua Ultraviolet Lamp
We have been using our Viqua UV Lamp for many years, basically as an insurance policy. We are on a dug well, and occasionally had surface water enter the well during spring. With this lamp in place, we can confidently drink the water. Currently we have tenants in the house so having the Viqua UV gives us the assurance that we will have no water quality problems. We change the bulb according to the manufacturers recommendations and clean the tube. I broke the tube this year when changing the lamp but it was time for a replacement anyhow. - Osiah
Highly recommend!
Best price and great service. I would definitely buy again! - Trell
Viqua UV Lamp
When I first seen the knock offs on Amazon a few years ago I tried one. Didn’t last 6-months. Only once in 10 years did the OEM fail short of the one year and home plus replaced it under warranty. They are the only ones to use. And the price, customer service and quick shipping is the best. - Monte
Viqua UV
Great price on lamp and sleeve package. It’s easier to replace the sleeve than try to clean it. Quick delivery too. - Jeff
Quick. Quality.
Great product. Great customer service. They even sent me an annual reminder! Product shipped accross Canada without any issue. - Erin
UV light
Nice product. Provides assurance of safe drinking water - Tom Steele
Viqua Trojan UV lamp
As usual I am very pleased with the UV lamp etc. The service is excellent always. Thank you. - Frances Betty Chun
UV bulb and sleeve
We have used this product for our spring water. We have a submersible pump in a 1500 gallon water tank down by our spring and a bladder pressure tank with a water filter and the UV purifier that we get the bulbs for. We have been extremely satisfied with the whole system and feel so good that we have spring water that is clean from debris and bad bacteria for our drinking. We have used this whole water system for over 20 years and have always been relieved knowing we have safe water. Thanks so much - Diane Richardson
Lamp/Sleeve Combo
As always item got to me well secured and protected to get across the country in great shape. Always pleased with service and handling of product. - George Archibald
Great quality product
Shipping was fast and efficient. I had the new bulb installed in about 5 minutes. - Tim
Viqua parts
This company has great prices, inventory and delivery. Filters, UV lamps, always arrive in a timely manner. - Jeff
Outstanding Service
Outstanding products and service. The only vendor that I will use. Well done! - Dave Jones

Viqua UVMax #602732 Sleeve for C/D Series Customer Questions & Answers

Question:	Will this fit model ihs12-d4 or ihs22-d4?
Answer(s):	Yes, this is the genuine OEM replacement lamp for the Viqua UVMax IHS12-D4 and IHS22-D4. By HomePlus Water on Jul 11, 2023

Question:	Does this come with the O-rings
Answer(s):	Yes, all Viqua sleeves and lamp / sleeve combos come with the necessary o-rings By HomePlus Water on Feb 15, 2024

It is critical that only genuine Viqua brand original equipment lamps be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV lamps. While they may physically fit in a Viqua system, they are NOT compatible. Testing of a wide range of these lamps has shown that many do not provide a safe UV dose or offer protection for the stated lamp life, and in some cases have even caused the failure of the ballast/controller and melting of the lamp harness.
