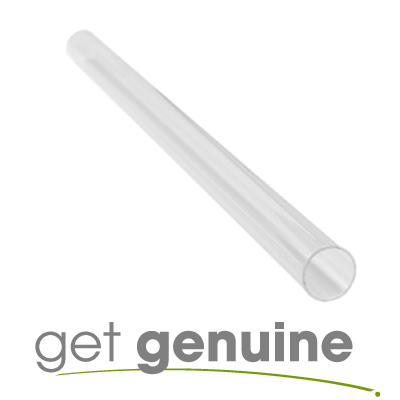

Viqua (Trojan) UVMax #602734 Replacement Sleeve for Models F, F+, F4, F4+ & Pro15

Viqua UVMax #602734 Sleeve for F Series

List Price: US$106.00
USD$90.00
You save: $16.00!!

Choose Option:



Lowest Price Guaranteed on the Viqua UVMax #602734 Sleeve for F Series

Lowest Price Guaranteed!

If you find a lower price on this product call us or Click here to request a price beat.
Make us an offer for the Viqua UVMax #602734 Sleeve for F Series         Free Shipping on #602734 Sleeve for F Series

Found a Lower Price? We price match comparable systems!
Request a Price Beat

Guaranteed Genuine Trojan UVMax #602734 Original Equipment Sleeve. Don't be Fooled by Knock-Offs!


Viqua UVMax #602734 Sleeve for F Series

  • Description
  • Specifications
  • Related Products
  • Installation / Manual
  • Reviews
  • FAQ
  • Why Genuine

We are pleased to offer a complete selection of replacement quartz sleeves for all Viqua (Trojan) UVMax ultraviolet (UV) sterilizers.

Viqua (Trojan) UVMax Model #602734 replacement sleeves are designed only for use in Viqua (Trojan) UVMax UV sterilizers. We do not recommend that you attempt to use Trojan replacement sleeves in models made by other manufacturers.

It is critical that only genuine UVMax brand original equipment sleeves be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV sleeves. While they may physically fit in a UVMax system, they are NOT compatible. Testing of a wide range of these sleeves has shown that many do not allow a safe UV dose to pass through the sleeve and may be subject to failure.

UVMax #602734 is the sleeve for the following models:

UVMax #602734 Specifications

Technical Specifications
Part # #602734
Replace Sleeve every 24 Months or as needed

Replacement Lamp
Part#:602807

Replacement Lamp <br>Part#:602807

List Price: US$214.00
Our Price: US$182.00
You save: $32.00


- More Info -

Lamp & Sleeve Combo
Part#:602810-104

Lamp & Sleeve Combo <br>Part#:602810-104

List Price: US$267.00
Our Price: US$227.00
You save: $40.00


- More Info -

How to change a UVMax #602734 Sleeve

  1. Turn off water supply valve to UV sterilizer
  2. Turn on faucet elsewhere in the home to depressurize the system
  3. Disconnect your UV system from power (unplug unit)
  4. Allow system to cool for 5 - 10 minutes
  5. Follow instructions for removing lamp
  6. Remove the top retaining nut & O-ring
  7. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water
  8. Remove the quartz sleeve from the UV chamber.
  9. Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
  10. Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s).
  11. Hand tighten the retaining nut(s), taking care not to over-tighten.
  12. When service is complete, assemble the prerequisites in the reverse order of disassembly.
  13. Turn on water supply valve
  14. Check for leaks
  15. Close faucet elsewhere in the home

Viqua UVMax #602734 Sleeve for F Series Reviews


Combo for Model F - Trojan UVMax 5 Stars
Excelent product, a pity it lasts only for one year and has to be replaced becoming somewhat expensive in that sense. - Roberto

Viqua UVMax #602734 Sleeve for F Series Customer Questions & Answers



Question:Does this come with the O-rings
Answer(s):

Yes, all Viqua sleeves and lamp / sleeve combos come with the necessary o-rings
By HomePlus Water on Feb 15, 2024

It is critical that only genuine Viqua brand original equipment lamps be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV lamps. While they may physically fit in a Viqua system, they are NOT compatible. Testing of a wide range of these lamps has shown that many do not provide a safe UV dose or offer protection for the stated lamp life, and in some cases have even caused the failure of the ballast/controller and melting of the lamp harness.
