Description & Benefits

Get all the performance of our flagship ecoPLUS™ EP-1000 filtration system plus our salt-free hard water treatment!

The ecoPlus™ EP-1000-TAC is specifically designed for larger homes requiring high flow rates.

Our ecoPLUS™ EP-1000-TAC premium whole house water treatment system combines the powerful chlorine removal capacity of our ecoPLUS™ primary media filter with our ecoTAC™ salt-free hard water conditioning system to provide wide-spectrum treatment for your home.

ecoPLUS™ is specifically engineered to treat city water by removing chlorine, chloramine, disinfection by-products, bad tastes and odors, and other trace contaminants including VOCs, pesticides, herbicides, organic chemicals, a wide range of heavy metals, and more. ecoPLUS™ delivers refreshing, great tasting drinking water and protects your skin and hair from the damaging effects of these contaminants.

ecoTAC™ Salt-Free Hard Water Treatment...

Our ecoTAC™ hard water conditioners use a salt-free water treatment technology called Template Assisted Crystalization (or "TAC" for short) to prevent hard water scale problems in your plumbing system, appliances, and more. Some of our competitors incorrectly refer to this technology as a "salt-free water softener."

Our name represents what we believe in. "eco" stands for a premium water treatment system that delivers pure, healthy water throughout your home in an ecologically-friendly manner - no water waste, no salt required, no electricity, and long-life equipment and media. "Plus" stands for the extra value we provide - our commitment to your satisfaction and our commitment to give you more value for your hard-earned dollar.

With ecoPLUS™, you will Pay Less and Get More - we guarantee it! If you take the time to compare, we are confident that you will see that ecoPLUS is simply a superior product at a more economical price. Click Here to take our comparison challenge!

Enjoy the benefits of chlorine-free water at every faucet...

Environmentally Friendly:

• Long media life, no replacement filters (except pre-filter)
• No electricity required
• No water waste - no drain required!
• No salt required

---

ecoPLUS™ is a modular treatment system allowing you to conveniently add additional treatment to improve the microbiological safety of your water.

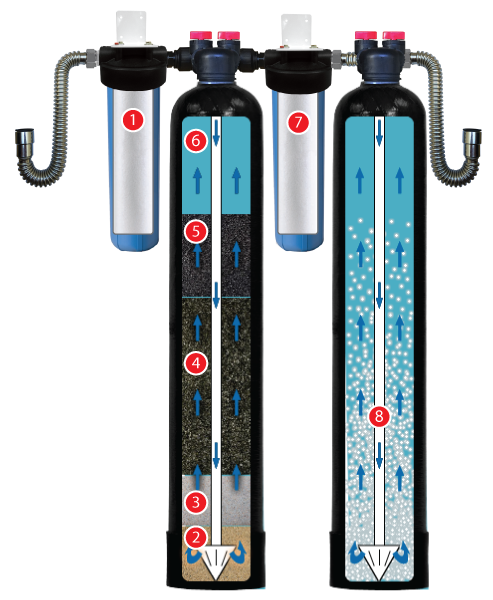

How our ecoPLUS™ EP-1000-TAC Works

The heart of all of our ecoPLUS™ premium water treatment systems is our ecoPLUS treatment tank which contains an optimal blend of water treatment media for wide-spectrum contaminant removal. To this, we add our ecoTAC salt-free hard water treatment technology to prevent mineral scale.

	The first step of our ecoPLUS system is a true high capacity, multi-gradient sediment filter. It is like having 4 sediment filters in one! The filter cartridge has 4 layers that provide progressively finer filtration down to 5 microns. Our filter has far higher capacity than our competitors, thereby reducing the frequency that you have to change filters and saving you money. Our pre-filter also provides better flow rates and less pressure loss!
	A proper gravel underbed distributes water flow evenly to prevent channeling in the filtration media.
	KDF-55 Media - a generous layer of KDF-55, a patented zinc/copper redox media that removes or reduces a wide range of contaminants including chlorine, as well as water soluble heavy metals such as lead, copper, mercury, and chromium. KDF-55 extends the life of the activated carbon media and has a bacteriostatic effect that reduces the risk of bacterial, algae, and fungal fouling.
	Brand-name, Calgon coconut shell activated carbon for the removal of chlorine, disinfection by-products, a wide range of volatile organic compounds (such as pesticides, herbicides, and chemical residuals), as well as a host of other contaminants that adversely affect the taste and smell of your water.
	True Centaur catalytic activated carbon to extend media life and enhance removal of chloramine, organics, and an even wider range of contaminants that impact the taste and smell of your water.
	Freeboard provides expansion room for the water filtration media during upflow service.
	ecoTAC™ salt-free hard water conditioners use a highly specialized media consisting of polymeric beads which serve as a powerful catalyst for the formation of nano-crystals of calcium and magnesium carbonate that remain suspended in solution instead of forming hard mineral scale on surfaces. This process is called Template Assisted Crystallization, or "TAC," (sometimes referred to as Nucleation Assisted Crystallization or "NAC") and is widely recognized as the most effective form of alternative hard water treatment.

The result is fresh, great tasting water at every tap, silky soft skin and hair when you bathe and shower.

The water flow path through our ecoPLUS™ system is upflow. This prevents clogging and eliminates the risk of channeling, a phenomenon that reduces the contact time between the media and the contaminants that negatively impacts performance of many downflow systems.

The media bed in our ecoPLUS™ EP-1000 series filters is designed to provide effective chlorine reduction over a life of 1,000,000 gallons or 5 years, after which the media in the tank can be replaced in about half an hour without any plumbing knowledge or special experience - anyone can do it. The current market leader in premium whole house filter systems suggests that this process is difficult - they just want to convince you to buy their expensive replacement tanks. Replacing the media in our tanks is not only easier and far more economical, it is better for the environment too.

---

More about TAC hard water conditioning...

Our ecoTAC™ salt-free hard water conditioners are an environmentally-friendly alternative to traditional water softeners in preventing hard water mineral scale from coating surfaces inside your plumbing system, water heater, dishwasher, and other appliances. Unlike a traditional water softener, ecoTAC™ conditioners do not require regeneration with salt, backwashing, or an expensive electronic control valve. Accordingly, they require almost no maintenance and are easier to install.

• Environmentally friendly
• Simple operation with no day-to-day maintenance
• No salt, no chemical regeneration, and no brine discharge!
• No backwash - save thousands of gallons of water per year
• Does not remove beneficial minerals

The nucleation sites on the TAC media attract calcium, magnesium, and bicarbonate ions. At these template sites, these building blocks of mineral scale combine to form microscopic (nanometer-sized) calcium carbonate and magnesium carbonate crystals. However, instead of forming typical calcite crystals (normal mineral scale), the template surface guides the formation of a crystal structure that does not stick to surfaces. As the crystals grow, they break off and become suspended in the water stream. Since this crystalline form is stable, it does not easily revert back to its dissolved form or stick to surfaces. If the water is allowed to evaporate on a surface (such as a glass shower screen), the crystals will be deposited and leave spots on the glass since the minerals are not actually removed; however, they should be easy to wipe away as they will not stick to the surface. TAC is often described as being a "salt-free water softener" by our competitors. Since the minerals which cause hardness are not actually removed, we don't believe this to be an accurate description of the technology. Nevertheless, there is little doubt that TAC is the most effective salt-free hard water conditioning technology currently available.

When water begins to flow into the bottom of the treatment tank, the TAC media is lifted and dispersed throughout the treatment tank in a fluidized bed; this enhances contact with the calcium and magnesium ions in the water. A contact time of only about 5 seconds is required for the treatment of up to 25 grain per gallon (approx. 425 ppm or mg/l) of hardness. Since the system is operated in a fluidized upflow configuration, the system will not clog with sediment and no backwashing is required.

As an added benefit, during the first few weeks after the installation of an ecoTAC™ conditioner, a de-scaling effect (where existing hard water scale build-up in the plumbing system is released) will often occur. Over time, this added benefit will enhance performance of water heating equipment and restore flow performance of plumbing fixtures.

A study conducted in 2011 by Arizona State University entitled, "Evaluation of Alternatives to Domestic Ion Exchange Water Softeners," backed these results. It determined that TAC technology was the most effective of all non-salt water conditioners at preventing mineral scale, with reduction levels consistently in excess of 90%. The results showed that TAC conditioners were far more effective than magnetic and electronic water conditioners at preventing hard water scale formation. This study also used the DVGW Standard W512 test protocol.

The only required maintenance is replacing the TAC media roughly every 4 to 5 years when treating municipally-supplied water. Some competitors suggest that their TAC media can last even longer, which is generally unrealistic. We would rather give you honest expectations based on real-life typical conditions, not overly-optimistic expectations that only a few people will experience. The replacement of the TAC media is simple and only takes about 30 minutes.

Compare ecoPLUS™ EP-1000-UV to Pelican™ ⁽¹⁾ PSE2000

Our top competitors build good products, but if you take the time to compare, we are confident that you will see where our commitment to effective and efficient design (and the extras we offer free with each system) provide you with a simply superior product at a more economical price.

With ecoPLUS™, you will Pay Less and Get More - we guarantee it!

Many of our top competitors over-inflate their prices only to offer special "discounts" that can change day-by-day and even hour by hour. Their pricing policy is designed to reduce your ability to comparison shop and create a sense of urgency to buy while a sale lasts. We believe you should have the time to research our products, compare, and make an informed buying decision on your schedule, and for the same everyday low price with no surprises. We also offer 90 day price protection on all ecoPLUS™ systems, and we will beat any competitor's price on a comparable product, so you can buy with confidence that you are getting the best value for your hard earned dollar.

Specifications

ecoPLUS™ EP-1000-TAC Specifcations:

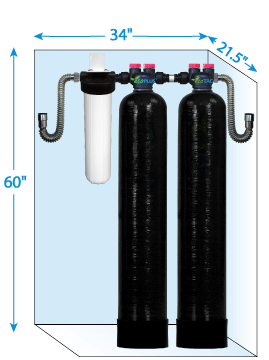

Approx. Assembled Size:	34"W X 60"H X 21.5"D
Tank Diameter:	10"
Max. Service Flow Rate:	15 GPM (57 LPM)
Rec. Service Flow Rate:	<10 GPM (37 LPM)
Home Size:	3 to 6 Bathrooms
Inlet/Outlet Connections:	1" Quick Connect to PEX, Copper or CPVC; or optional 1" MNPT
Pre-Filter Model:	Hydronix SDC-45-2005 replace every 9 to 12 months
Replacement ecoPLUS™ Media:	EP-1000-R ecoPLUS™ Replacement Media Package for EP-1000 replace every 5 years or 1,000,000 gallons
Replacement ecoTAC™ Media:	ScaleStop 5 Liters replace approx. every 5 years
ecoPLUS™ EP-1000 Operating Conditions:
Operating Temperature:	36F to 100F (2 to 38C)
Operating Pressure:	20 to 90 psi (1.4 to 6.2 bar)
pH Range:	6.5 to 8.5
Maximum Hardness:	75 grains per gallon (1,280 mg/l or ppm)
Maximum Iron:*	0.3 ppm (mg/l)
Maximum Manganese:*	0.05 ppm (mg/l)
Maximum Copper (TAC Only):	1.3 ppm (mg/l)

* Iron and manganese are not commonly found in municipally chlorinated water supplies.

EcoPlus EP-1000-TAC
Installation & Owners Manual

Installation / Manuals

We have designed our ecoPLUS™ systems for ease of installation. Unlike our competitors (who make you pay extra for a convenient installation kit) we offer a premium installation kit at no extra cost. Our installation kits use flexible stainless steel pipes and quick-connect style connectors and fittings to attach the treatment system to your plumbing pipe and to connect the various system components to each other. Connects to PEX, copper, and CPVC pipe in seconds with no special tools or plumbing knowledge required. Additionally, all of our installation fittings are NSF/ANSI Standard 61 validated so you can be assured of their material safety for potable water applications.

If you can connect a garden hose to a hose bib, you can assemble our systems! It is just that easy!

Our convenient installation kit reduces installation time and cost.

We recommend that ecoPLUS™ systems be installed by a licensed plumber; however, your warranty is valid as long as your system is installed in accordance with local plumbing codes and the Owner's Manual.

ecoPLUS™ EP-1000-TAC Premium Whole House Water Filter Customer Questions & Answers

Question:	What are the volumes or masses of the various media in the EP-1000?
Answer(s):	The EP-1000 is made up of 22.8 lbs of KDF-55 Media, 1.1 cubic feet of Calgon coconut shell activated carbon, and 0.4 cubic feet of Centaur catalytic activated carbon. By HomePlus Water on Sep 12, 2023

Question:	Annual replacement filter requirements and costs of filters for eco pls hard water sysrem
Answer(s):	The prefilter (Hydronix SDC-45-2005) is typically replaced every 9 - 12 months. The EcoPlus media is typically replaced every 5 years. The EcoTac media (Scale Stop) is also typically replaced every 5 years. It requires 5 liters of it. By HomePlus Water on Dec 19, 2023

Question:	Does the system reduce water pressure?
Answer(s):	Yes, like any filter with a cartridge or tank the ecoPlus EP-1000-TAC Premium Whole House Water Filter System will slightly reduce pressure. It is typically only a few PSI at typical service flow rates. By HomePlus Water on Jun 24, 2024

Question:

Does the system remove PFAS?

Answer(s):

Activated carbon like that found in the first tank of the EP-1000-TAC has been shown to remove PFAS from water, but the system as a whole has not been tested or certified for the remove PFAS. If used for PFAS removal the media will have a shorter lifespan than if it was used primarily for chlorine reduction. If you are looking for a system for PFAS removal we'd recommend the Enpress Pioneer. It is certified for PFAS removal, has a filter life monitor, and is also a great multi-purpose filter. By HomePlus Water on Jun 24, 2024

Question:	Hi, I'm ordering a 6-pack of replacement filters (Hydronix SDC-45-2005) and need to order the matching rings for the sediment filter that came with my EP-600-TAC system...but I can't seem to find them. What part do I need to order? Thank you
Answer(s):	You need the Pentek Big Blue Housing O-Ring - #151122. You can find it at https://www.home-water-purifiers-and-filters.com/water-filter-o-rings.php By HomePlus Water on Jul 25, 2024

Validations

Only the best components go into our ecoPLUS™ water treatment systems. They are sourced from some of the leading manufacturers in the business, and assembled at our factory in Canada. You can be assured that only the finest materials have gone into the manufacture of all ecoPLUS™ systems and that the materials used are safe for potable water contact. The following is a list of key system components:

Item	Manufacturer	Material Safety Validations
Valve & Bypass Assembly	Clack Corporation Windsor, WI, USA Made in USA	NSF/ANSI Standard 44 NSF/ANSI Standard 372
Media Tanks	Pentair PLC Milwaukee, WI, USA Made in USA	NSF/ANSI Standard 42
Calgon Activated Carbon	Calgon Carbon Corporation Moon Township, PA, USA Made in India	NSF/ANSI Standard 61
Centaur Catalytic Activated Carbon	Calgon Carbon Corporation Moon Township, PA, USA Made in USA	NSF/ANSI Standard 61
KDF-55 Process Media	KDF Fluid Treatment, Inc. Three Rivers, MI, USA Made in USA	NSF/ANSI Standard 42
Salt-Free Conditioning Media	Next Filtration Technologies Inc. Lake Worth, FL, USA Made in USA	NSF/ANSI Standard 61
Cartridge Filter Housing	Pentair PLC Milwaukee, WI, USA Made in Mexico	NSF/ANSI Standard 42
Cartridge Filter	Hydronix Water Technology Ontario, CA, USA Made in Taiwan	NSF/ANSI Standard 42
Quick Connect Fittings	The John Guest Group of Companies Middlesex, England Made in England	NSF/ANSI Standard 14 NSF/ANSI Standard 61 (G)
Flexible Stainless Steel Connectors	Falcon Stainless Inc. Temecula, CA, USA Made in China	NSF/ANSI 61 Section 9 ASME A112.18.6 CSA B125.6
Optional UV Sterilizer	VIQUA, a Trojan Technologies Company Guelph, ON Canada Made in Canada	Stainless Steel

Warranty Details

ecoPLUS™ premium water treatment systems are backed by a comprehensive warranty program including Limited Lifetime Warranty on major components.

Major components, including the cartridge filter housing, media tank(s), riser tube(s), upper media screen(s), and tank valve(s) also known as an in/out valve, are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the life of the system, subject the limitations noted below.

Subject the limitations noted below, all other components are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the following periods:

ecoPLUS™ EP-600 Media Series: 600,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoPLUS™ EP-1000 Media Series: 1,000,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoTAC™ EP-600 Series Media: 600,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoTAC™ EP-1000 Series Media: 1,000,000 gallons or 5 Years whichever comes first, Pro-rated*
UV Sterilizer Chamber: 10 Years
UV Sterilizer Controller: 3 Years
All Other Components: 1 year

*Note: ecoPLUS™ systems are designed to treat water supplied by a public water utility. The ecoPLUS™ and ecoTAC™ media warranties are void if supplied by untreated well or surface water, or if feed water falls outside of the specified operating conditions.

The term of these warranties begins on the date of delivery of the product to the customer and continues until the earlier of:

• the end of the warranty term noted above; or
• the date in which the product(s) is/are removed from the original location of installation; or
• the date in which the original purchaser sells or otherwise transfers ownership of the home in which the product(s) was/were originally installed.

Only products purchased from an Authorized Dealer or HomePlus Products Inc. directly are eligible for this warranty. The products must have been installed and operated in accordance with the instructions and operating conditions stated in the Owner's Manual.

Customer must register his or her warranty with HomePlus products Inc. within 90 days of original purchase for the warranty to remain valid.

This warranty applies only in Canada and the United States of America.

In the event that a part is deemed defective, the user must immediately inform HomePlus Products Inc. who will furnish a replacement part at no cost to the user. HomePlus' obligation to the customer shall be limited to the replacement of the defective part by prepaid standard freight to the original point of installation. Expedited shipping is available at the discretion and cost of the customer. When required, the return of defective parts to HomePlus is the responsibility of the customer.

This warranty does not cover any labour costs including labour costs related to troubleshooting, repair, installation, or maintenance.

This warranty does not apply to the following situations: misuse; normal wear and tear; neglect; unauthorized repair or damage caused through installation, adaptation, or modification; use in an improper manner or manner inconsistent with the manufacturer's installation, operating, and maintenance instructions; misapplication; wear or deterioration due to environmental conditions; damage occurring during transit; mishandling; improper storage; incorrect supply of water; tampering or alteration; fire, freezing; Act of god; or any cause beyond the control of HomePlus Products Inc.

The original warranty period does not change in the event of part replacement by HomePlus Products Inc.

This warranty is issued exclusively to the original consumer purchaser of record so long as the product remains installed in the original location of installation, and is not transferable.

The provisions of the foregoing warranties are in lieu of any other warranty, whether expressed or implied, written or oral (including any warranty of merchantability or fitness for a particular purpose). HomePlus Product Inc.'s liability arising out of the manufacture, sale, or supplying of the products or their use or disposition, whether based upon warranty, contract, tort, or otherwise, shall not exceed the actual purchase price paid by the authorized distributor or consumer for the product. In no event shall HomePlus Products Inc. be liable to the distributor or any other person or entity for special, incidental, consequential or punitive damages (including, but not limited to, property loss, loss of incomes, or loss of use damages) arising out of the manufacture, sale, or supplying of the products, even if HomePlus Products Inc. has been advised of the possibility of such damages or losses. These warranties are governed by the laws of the Province of British Columbia, Canada, and may change without notice.

To report a warranty problem with your system or request warranty service, please call HomePlus Products Inc. toll free: 1-866-376-2690
