Description & Benefits

Get all the performance of our flagship ecoPLUS™ EP-600 filtration system with the added security and protection of UV disinfection!

ecoPLUS™ is specifically engineered to treat city water by removing chlorine, chloramine, disinfection by-products, bad tastes and odors, and other trace contaminants including VOCs, pesticides, herbicides, organic chemicals, a wide range of heavy metals, and more. ecoPLUS delivers refreshing, great tasting drinking water and protects your skin and hair from the damaging effects of these contaminants.

UV Disinfection for Added Safety...

Our ecoPLUS™ EP-600-UV model includes the added benefits of a premium grade ultraviolet (UV) sterilizer which disinfects the water without the use of any chemicals, ensuring your water is free of harmful bacteria, viruses, and other microbiological contaminants like cryptosporidium and giardia (beaver fever).

With the infrastructure of cities all over North America crumbling under neglect and budget constraints, many customers have asked us if there was a product that they could add to their system that would provide them with additional insurance and peace-of-mind against the possibility of a failure of their municipal water treatment system. The concerns have arisen due to several high-profile cases of contamination in city water supplies across the continent, some of which have resulted in illness and even death. UV disinfection is safe, effective, economical, and best of all, does not add undesirable chemicals to your water like chlorine or chloramine. We offer a superior UV system with colour LCD display at a lower price than our competitors - simply better value!

We buy health insurance, life insurance, house insurance, car insurance, and even travel insurance...
adding UV to your water treatment system is like buying "water insurance."

Our name stands for what we believe in - "eco" stands for a premium water treatment system that delivers pure, healthy water throughout your home in an ecologically-friendly manner - no water waste, no salt or chemicals required, no electricity, and long-life equipment and media. "Plus" stands for the extra value we provide - our commitment to your satisfaction and our commitment to give you more value for your hard-earned dollar.

With ecoPLUS™, you will Pay Less and Get More - we guarantee it! If you take the time to compare, we are confident that you will see that ecoPLUS is simply a superior product at a more economical price. Click Here to take our comparison challenge!

Enjoy the benefits of chlorine-free water at every faucet...

Environmentally Friendly:

• Long media life, no replacement filters (except pre-filter)
• No electricity required
• No water waste - no drain required!
• No salt required
• Non-chemical disinfection

---

ecoPLUS™ is a modular treatment system allowing you to conveniently add additional treatment for hard water scale prevention.

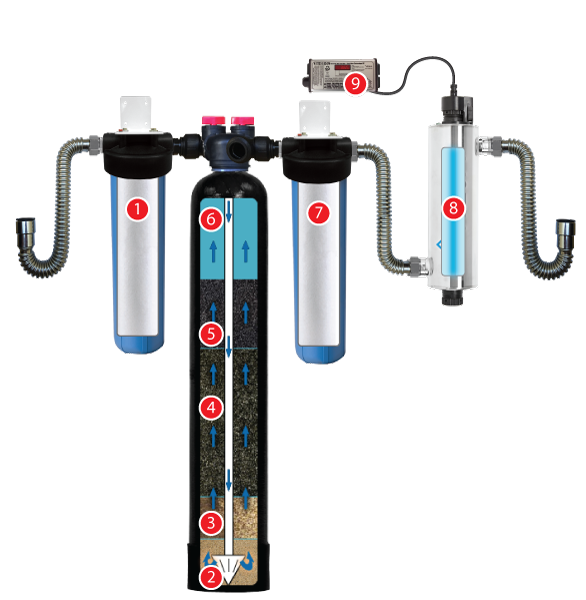

How our ecoPLUS™ EP-600-UV Works

The heart of our ecoPLUS™ EP-600-UV premium water treatment system is our ecoPLUS™ treatment tank which contains an optimal blend of water treatment media for wide-spectrum contaminant removal. To this, we add a brand-name ultraviolet (UV) light sterilizer which disinfects the water to kill bacteria, viruses, and other microbiological contaminants that can cause illness.

	The first step of our ecoPLUS™ system is a true high capacity, multi-gradient sediment filter. It is like having 4 sediment filters in one! The filter cartridge has 4 layers that provide progressively finer filtration down to 5 microns. Our filter has far higher capacity than our competitors, thereby reducing the frequency that you have to change filters and saving you money. Our pre-filter also provides better flow rates and less pressure loss!
	A proper gravel underbed distributes water flow evenly to prevent channeling in the filtration media.
	KDF-55 Media - a generous layer of KDF-55, a patented zinc/copper redox media that removes or reduces a wide range of contaminants including chlorine, as well as water soluble heavy metals such as lead, copper, mercury, and chromium. KDF-55 extends the life of the activated carbon media and has a bacteriostatic effect that reduces the risk of bacterial, algae, and fungal fouling.
	Brand-name, Calgon coconut shell activated carbon for the removal of chlorine, disinfection by-products, a wide range of volatile organic compounds (such as pesticides, herbicides, and chemical residuals), as well as a host of other contaminants that adversely affect the taste and smell of your water.
	True Centaur catalytic activated carbon to extend media life and enhance removal of chloramine, organics, and an even wider range of contaminants that impact the taste and smell of your water.
	Freeboard provides expansion room for the water filtration media during upflow service.
	A high-output UV lamp generates 254 nm UV "C" rays that destroy the DNA of bacteria, viruses, and other pathogens, rendering them harmless without adding anything to the water or changing its taste. Simply safer water for you and your family!
	Our superior UV controller features a large full-color LCD screen that provides an intuitive interface to access information about remaining lamp life, as well as quick reference instructions for lamp replacement, maintenance, and troubleshooting, and a replacement parts listing. Everything you need at your finger tips! Multi-language support (English, Spanish, and French).

The result is fresh, great tasting water at every tap, silky soft skin and hair when you bathe and shower, and greater assurance of water safety.

The water flow path through our ecoPLUS™ system is upflow. This prevents clogging and eliminates the risk of channeling, a phenomenon that reduces the contact time between the media and the contaminants that negatively impacts performance of many downflow systems.

The media bed in the ecoPLUS™ EP-600-UV is designed to provide effective chlorine reduction over a life of 600,000 gallons or 5 years, after which the media in the tank can be replaced in about half an hour without any plumbing knowledge or special experience - anyone can do it. The current market leader in premium whole house filter systems suggests that this process is difficult - they just want to convince you to buy their expensive replacement tanks. Replacing the media in our tanks is not only easier and far more economical, it is better for the environment too.

---

More About UV Disinfection for Added Safety...

With the infrastructure of cities all over North America crumbling under neglect and budget constraints, many customers have asked us if there was a product that they could add to their system that would provide them with additional insurance and peace-of-mind against the possibility of a failure of their municipal water treatment system. The concerns have arisen due to several high-profile cases of contamination in city water supplies across the continent, some of which have resulted in illness and even death. Our ecoPLUS™ EP-600-UV is equipped with an ultraviolet light (UV) sterilizer to disinfect your water of bacteria, viruses, and other illness-causing microogranisms. UV disinfection is safe, effective, economical, and best of all, does not add undesirable chemicals to your water like chlorine or chloramine. We offer a superior UV system with colour LCD display at a lower price than our competitors - simply better value. The UV sterilizer uses a high-output UV lamp to generate 254nm UV "C" rays that destroy the DNA of bacteria, viruses, and other pathogens rendering them harmless. Simply safer water for you and your family!

The UV system is designed for very low maintenance operation. The system will provide an automatic reminder when it is time to replace the UV lamp - once per year. The large color LCD screen provides a countdown of the remaining lamp life as well as a range of information to help you maintain your system. No tools are required for lamp replacement. The replacement can be done in about 5 minutes - it's just that easy.

Comparison to Competitors

Our top competitors build good products, but if you take the time to compare, we are confident that you will see where our commitment to effective and efficient design (and the extras we offer free with each system) provide you with a simply superior product at a more economical price.

In addition to offering no charge extra's like a free premium installation kit, you will find that many of our other components are superior as well. Be sure to check out our new premium UV controller with color LCD display and substantially higher disinfection capacity / UV dose than the competition! More dose = greater protection!

With ecoPLUS™, you will Pay Less and Get More - we guarantee it!

Many of our top competitors over-inflate their prices only to offer special "discounts" that can change day-by-day and even hour by hour. Their pricing policy is designed to reduce your ability to comparison shop and create a sense of urgency to buy while a sale lasts. We believe you should have the time to research our products, compare, and make an informed buying decision on your schedule, and for the same everyday low price with no surprises. We also offer 90 day price protection on all ecoPLUS systems, and we will beat any competitor's price on a comparable product, so you can buy with confidence that you are getting the best value for your hard earned dollar.

Specifications

ecoPLUS™ EP-600-UV Specifcations:

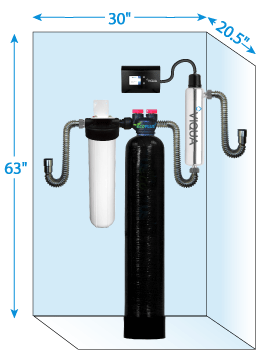

Approx. Assembled Size:	30"W X 63"H X 20.5"D
Tank Diameter:	8"
Max. Service Flow Rate:	10 GPM (37 LPM)
Rec. Service Flow Rate:	<7 GPM (25 LPM)
Home Size:	1 to 3 Bathrooms
Inlet/Outlet Connections:	1" Quick Connect to PEX, Copper or CPVC; or optional 1" MNPT
Pre-Filter Model:	Hydronix SDC-45-2005 replace every 9 to 12 months
Replacement Media:	EP-600-R ecoPLUS™ Replacement Media Package for EP-600 replace every 5 years or 600,000 gallons
UV Lamp Sterilizer:	Viqua UVMax D4 Premium w/ Color LCD Display
Replacement UV Lamp:	#602805 replace every 12 months (9,000 hours)
Replacement UV Sleeve:	#602732 replace if damaged or clouded after cleaning, approx. every 3 years
ecoPLUS™ EP-600 Operating Conditions:
Operating Temperature:	36F to 100F (2 to 38C)
Operating Pressure:	20 to 90 psi (1.4 to 6.2 bar)
pH Range:	6.5 to 8.5
Maximum Hardness:	75 grains per gallon (1,280 mg/l or ppm)
Maximum Iron:*	0.3 ppm (mg/l)
Maximum Manganese:*	0.05 ppm (mg/l)
Maximum Copper (TAC Only):	1.3 ppm (mg/l)

* Iron and manganese are not commonly found in municipally chlorinated water supplies.

EcoPlus EP-600-UV
Installation & Owners Manual

Installation / Manuals

We have designed our ecoPLUS™ systems for ease of installation. Unlike our competitors (who make you pay extra for a convenient installation kit) we offer a premium installation kit at no extra cost. Our installation kits use flexible stainless steel pipes and quick-connect style connectors and fittings to attach the treatment system to your plumbing pipe and to connect the various system components to each other. Connects to PEX, copper, and CPVC pipe in seconds with no special tools or plumbing knowledge required. Additionally, all of our installation fittings are NSF/ANSI Standard 61 validated so you can be assured of their material safety for potable water applications.

If you can connect a garden hose to a hose bib, you can assemble our systems! It is just that easy!

Our convenient installation kit reduces installation time and cost.

We recommend that ecoPLUS™ systems be installed by a licensed plumber; however, your warranty is valid as long as your system is installed in accordance with local plumbing codes and the Owner's Manual.

ecoPLUS™ EP-600-UV Premium Whole House Water Filter Customer Questions & Answers

Question:

Does the system remove PFAS?

Answer(s):

Activated carbon like that found in the first tank of the EP-1000-TAC has been shown to remove PFAS from water, but the system as a whole has not been tested or certified for the remove PFAS. If used for PFAS removal the media will have a shorter lifespan than if it was used primarily for chlorine reduction. If you are looking for a system for PFAS removal we'd recommend the Enpress Pioneer. It is certified for PFAS removal, has a filter life monitor, and is also a great multi-purpose filter. By HomePlus Water on Jun 24, 2024

Question:	Hi, I'm ordering a 6-pack of replacement filters (Hydronix SDC-45-2005) and need to order the matching rings for the sediment filter that came with my EP-600-TAC system...but I can't seem to find them. What part do I need to order? Thank you
Answer(s):	You need the Pentek Big Blue Housing O-Ring - #151122. You can find it at https://www.home-water-purifiers-and-filters.com/water-filter-o-rings.php By HomePlus Water on Jul 25, 2024

Validations

Only the best components go into our ecoPLUS™ water treatment systems. They are sourced from some of the leading manufacturers in the business, and assembled at our factory in Canada. You can be assured that only the finest materials have gone into the manufacture of all ecoPLUS™ systems and that the materials used are safe for potable water contact. The following is a list of key system components:

Item	Manufacturer	Material Safety Validations
Valve & Bypass Assembly	Clack Corporation Windsor, WI, USA Made in USA	NSF/ANSI Standard 44 NSF/ANSI Standard 372
Media Tanks	Pentair PLC Milwaukee, WI, USA Made in USA	NSF/ANSI Standard 42
Calgon Activated Carbon	Calgon Carbon Corporation Moon Township, PA, USA Made in India	NSF/ANSI Standard 61
Centaur Catalytic Activated Carbon	Calgon Carbon Corporation Moon Township, PA, USA Made in USA	NSF/ANSI Standard 61
KDF-55 Process Media	KDF Fluid Treatment, Inc. Three Rivers, MI, USA Made in USA	NSF/ANSI Standard 42
UV Sterilizer	VIQUA, a Trojan Technologies Company Guelph, ON Canada Made in Canada	Stainless Steel
Cartridge Filter Housing	Pentair PLC Milwaukee, WI, USA Made in Mexico	NSF/ANSI Standard 42
Cartridge Filter	Hydronix Water Technology Ontario, CA, USA Made in Taiwan	NSF/ANSI Standard 42
Quick Connect Fittings	The John Guest Group of Companies Middlesex, England Made in England	NSF/ANSI Standard 14 NSF/ANSI Standard 61 (G)
Flexible Stainless Steel Connectors	Falcon Stainless Inc. Temecula, CA, USA Made in China	NSF/ANSI 61 Section 9 ASME A112.18.6 CSA B125.6
Optional Salt-Free Conditioning Media	Next Filtration Technologies Inc. Lake Worth, FL, USA Made in USA	NSF/ANSI Standard 61

Warranty Details

ecoPLUS™ premium water treatment systems are backed by a comprehensive warranty program including Limited Lifetime Warranty on major components.

Major components, including the cartridge filter housing, media tank(s), riser tube(s), upper media screen(s), and tank valve(s) also known as an in/out valve, are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the life of the system, subject the limitations noted below.

Subject the limitations noted below, all other components are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the following periods:

ecoPLUS™ EP-600 Media Series: 600,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoPLUS™ EP-1000 Media Series: 1,000,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoTAC™ EP-600 Series Media: 600,000 gallons or 5 Years whichever comes first, Pro-rated*
ecoTAC™ EP-1000 Series Media: 1,000,000 gallons or 5 Years whichever comes first, Pro-rated*
UV Sterilizer Chamber: 10 Years
UV Sterilizer Controller: 3 Years
All Other Components: 1 year

*Note: ecoPLUS™ systems are designed to treat water supplied by a public water utility. The ecoPLUS™ and ecoTAC™ media warranties are void if supplied by untreated well or surface water, or if feed water falls outside of the specified operating conditions.

The term of these warranties begins on the date of delivery of the product to the customer and continues until the earlier of:

• the end of the warranty term noted above; or
• the date in which the product(s) is/are removed from the original location of installation; or
• the date in which the original purchaser sells or otherwise transfers ownership of the home in which the product(s) was/were originally installed.

Only products purchased from an Authorized Dealer or HomePlus Products Inc. directly are eligible for this warranty. The products must have been installed and operated in accordance with the instructions and operating conditions stated in the Owner's Manual.

Customer must register his or her warranty with HomePlus products Inc. within 90 days of original purchase for the warranty to remain valid.

This warranty applies only in Canada and the United States of America.

In the event that a part is deemed defective, the user must immediately inform HomePlus Products Inc. who will furnish a replacement part at no cost to the user. HomePlus' obligation to the customer shall be limited to the replacement of the defective part by prepaid standard freight to the original point of installation. Expedited shipping is available at the discretion and cost of the customer. When required, the return of defective parts to HomePlus is the responsibility of the customer.

This warranty does not cover any labour costs including labour costs related to troubleshooting, repair, installation, or maintenance.

This warranty does not apply to the following situations: misuse; normal wear and tear; neglect; unauthorized repair or damage caused through installation, adaptation, or modification; use in an improper manner or manner inconsistent with the manufacturer's installation, operating, and maintenance instructions; misapplication; wear or deterioration due to environmental conditions; damage occurring during transit; mishandling; improper storage; incorrect supply of water; tampering or alteration; fire, freezing; Act of god; or any cause beyond the control of HomePlus Products Inc.

The original warranty period does not change in the event of part replacement by HomePlus Products Inc.

This warranty is issued exclusively to the original consumer purchaser of record so long as the product remains installed in the original location of installation, and is not transferable.

The provisions of the foregoing warranties are in lieu of any other warranty, whether expressed or implied, written or oral (including any warranty of merchantability or fitness for a particular purpose). HomePlus Product Inc.'s liability arising out of the manufacture, sale, or supplying of the products or their use or disposition, whether based upon warranty, contract, tort, or otherwise, shall not exceed the actual purchase price paid by the authorized distributor or consumer for the product. In no event shall HomePlus Products Inc. be liable to the distributor or any other person or entity for special, incidental, consequential or punitive damages (including, but not limited to, property loss, loss of incomes, or loss of use damages) arising out of the manufacture, sale, or supplying of the products, even if HomePlus Products Inc. has been advised of the possibility of such damages or losses. These warranties are governed by the laws of the Province of British Columbia, Canada, and may change without notice.

To report a warranty problem with your system or request warranty service, please call HomePlus Products Inc. toll free: 1-866-376-2690
